4inch Geared High Torque Hub Motor
Model: T-HM-004G
Type: DC brushless geared hub motor
Output power (W): 120-250
Voltage（V）：24/36/48
Rated speed(rpm):210
Rated current (A): 9A
Torque（N.m): 12
Diameter with tire(mm): 110
Brake method: EBS
Weight (kg): 2
5inch Geared High Torque Hub Motor
Model: T-HM-005G
Type: DC brushless geared hub motor
Output power (W): 120-250
Voltage（V）：24/36/48
Rated speed(rpm): 290
Rated current (A): 10A
Torque（N.m): 8
Diameter with tire(mm): 128
Brake method: EBS
Weight (kg): 2.5
8inch Geared High Torque Hub Motor
Model: T-HM-008G
Type: DC brushless geared hub motor
Output power (W): 120-400
Voltage（V）：24/36/48
Rated speed(rpm): 250
Rated current (A): 8A
Torque（N.m): 9
Diameter with tire(mm): 200
Brake method: EBS/disc brake
Weight (kg): 5
10inch Geared High Torque Hub Motor
Model: T-HM-010G
Type: DC brushless geared hub motor
Output power (W): 250-500
Voltage（V）：24/36/48
Rated speed(rpm): 150
Rated current (A): 11A
Torque（N.m): 15
Diameter with tire(mm): 200
Brake method: EBS/disc brake
Weight (kg): 5
13inch Geared High Torque Hub Motor
Model: T-HM-013G
Type: DC brushless geared hub motor
Output power (W): 250-500
Voltage（V）：24/36/48
Rated speed(rpm): 220
Rated current (A): 8A
Torque（N.m): 14
Diameter with tire(mm): 330
Brake method: EBS/disc brake
Weight (kg): 6

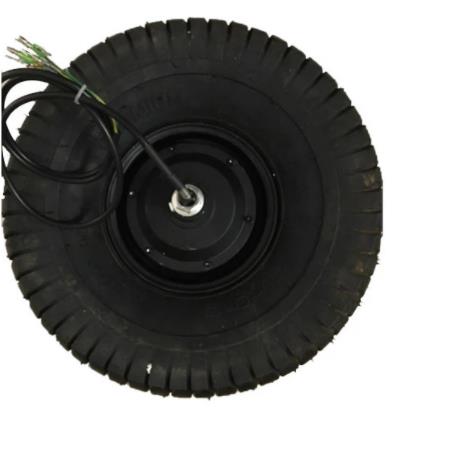

15inch Geared High Torque Hub Motor
Model: T-HM-015G
Type: DC brushless geared hub motor
Output power (W): 250-500
Voltage（V）：24/36/48
Rated speed(rpm): 590
Rated current (A): 13A
Torque（N.m): 14
Diameter with tire(mm): 380
Brake method: EBS/disc brake
Weight (kg): 7
16inch Geared High Torque Hub Motor
Model: T-HM-016G
Type: DC brushless geared hub motor
Output power (W): 500-1000
Voltage（V）：24/36/48
Rated speed(rpm): 300
Rated current (A): 15A
Torque（N.m): 80
Diameter with tire(mm): 400
Brake method: EBS/disc brake
Weight (kg): 7
