The most popular in wheel motor size for electric wheelbarrow is 13inch, 14.5inch, 15inch, and 16inch

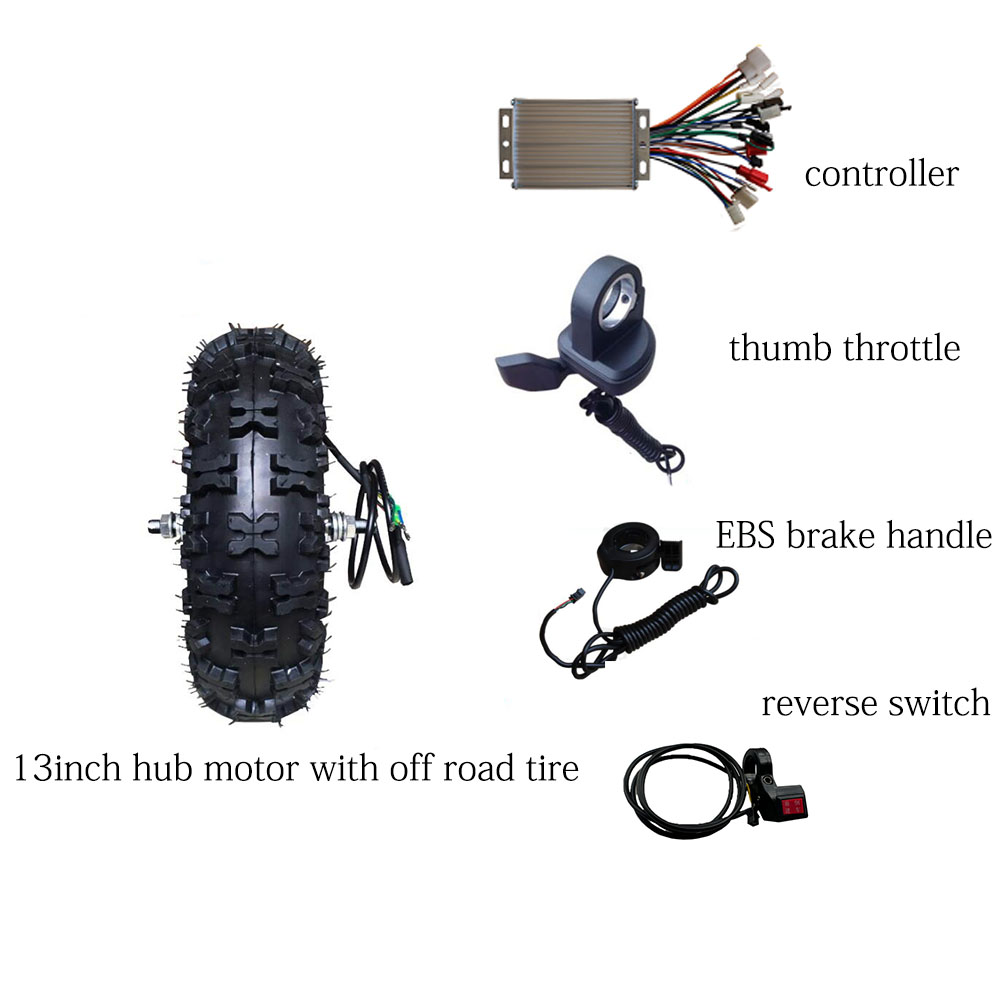

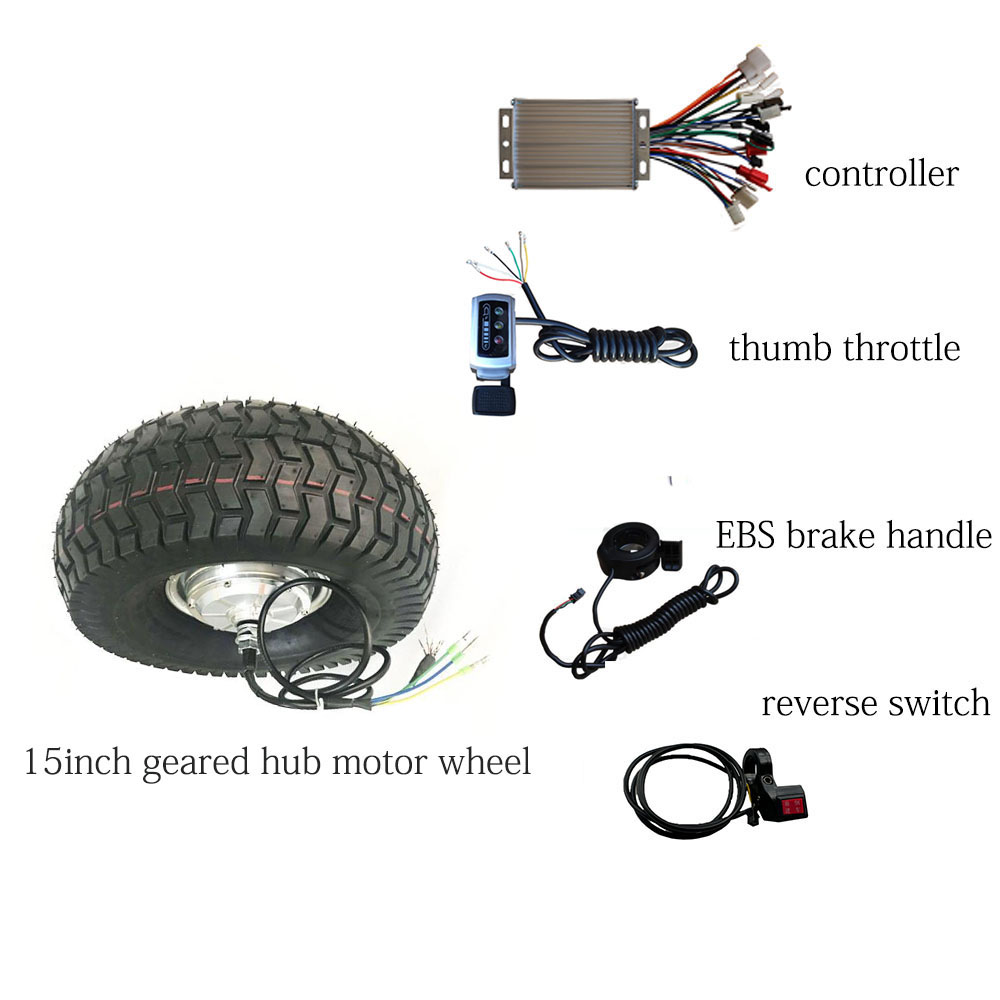

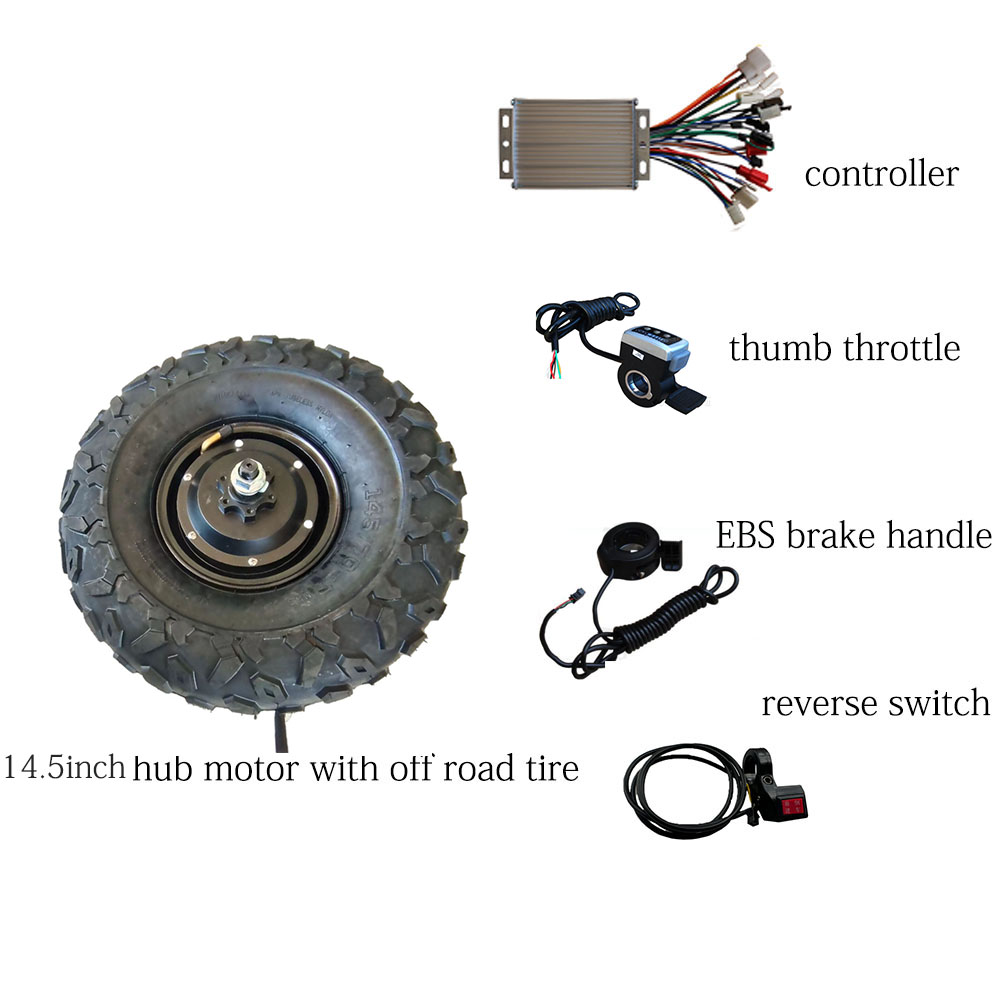

The kits include: DC brushless hub motor wheel, controller, electric brake handle, reverse switch, thumb throttle.
To make the complete wheelbarrow working, you also need a battery, lithium battery is ok

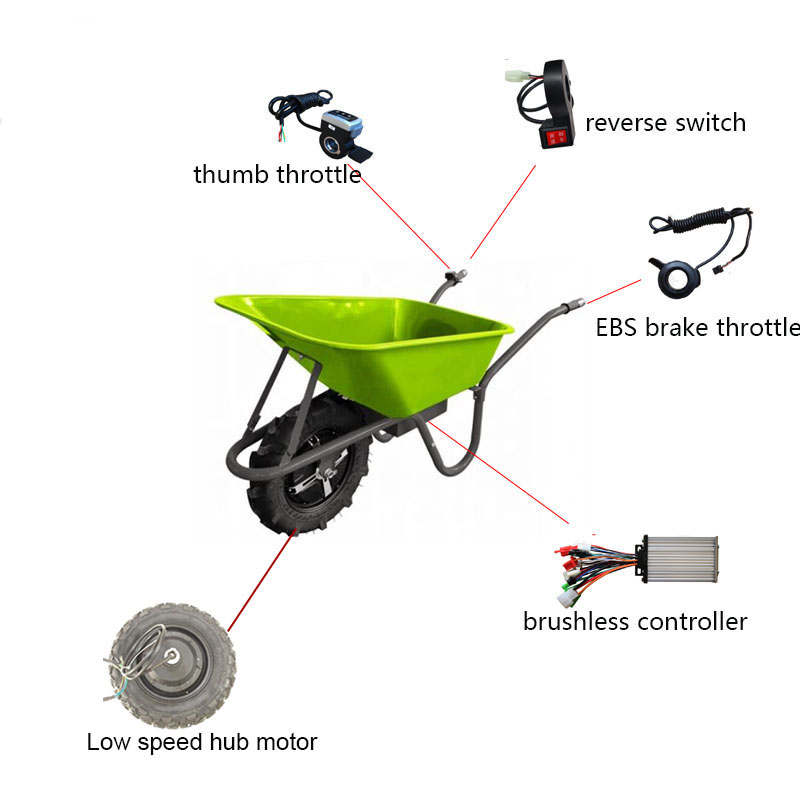

You can DIY garden powered wheelbarrow, motorized barrow, fishing power barrow, trolley and so on with the hub motor kits
This high torque low speed geared hub motor with off-road tire is specially for wheelbarrow and trolley running on road like grass, sand, soil, uneven road with high perfermence and good climbing capacity.
Model: T-HM-013G
Type: DC brushless geared hub motor
Output power (W): 250-500
Voltage（V）：24/36/48
Unload speed(rpm): 300
No-load current (A): 13A
Torque（N.m): 14
Diameter with tire(mm): 330
Brake method: EBS/disc brake
Weight (kg): 6
Gear Ratio: 1:4.33
Model: T-HM-014G
Type: DC brushless geared hub motor
Output power (W): 250-500
Voltage（V）：24/36/48
Unload speed(rpm): 590
No-load current (A): 13A
Torque（N.m): 14
Diameter with tire(mm): 368
Brake method: EBS/disc brake
Weight (kg): 7
Gear Ratio: 1:4.33
Model: T-HM-015G
Type: DC brushless geared hub motor
Output power (W): 250-500
Voltage（V）：24/36/48
Unload speed(rpm): 590
No-load current (A): 13A
Torque（N.m): 14
Diameter with tire(mm): 380
Brake method: EBS/disc brake
Weight (kg): 7
Gear Ratio:1:4.33

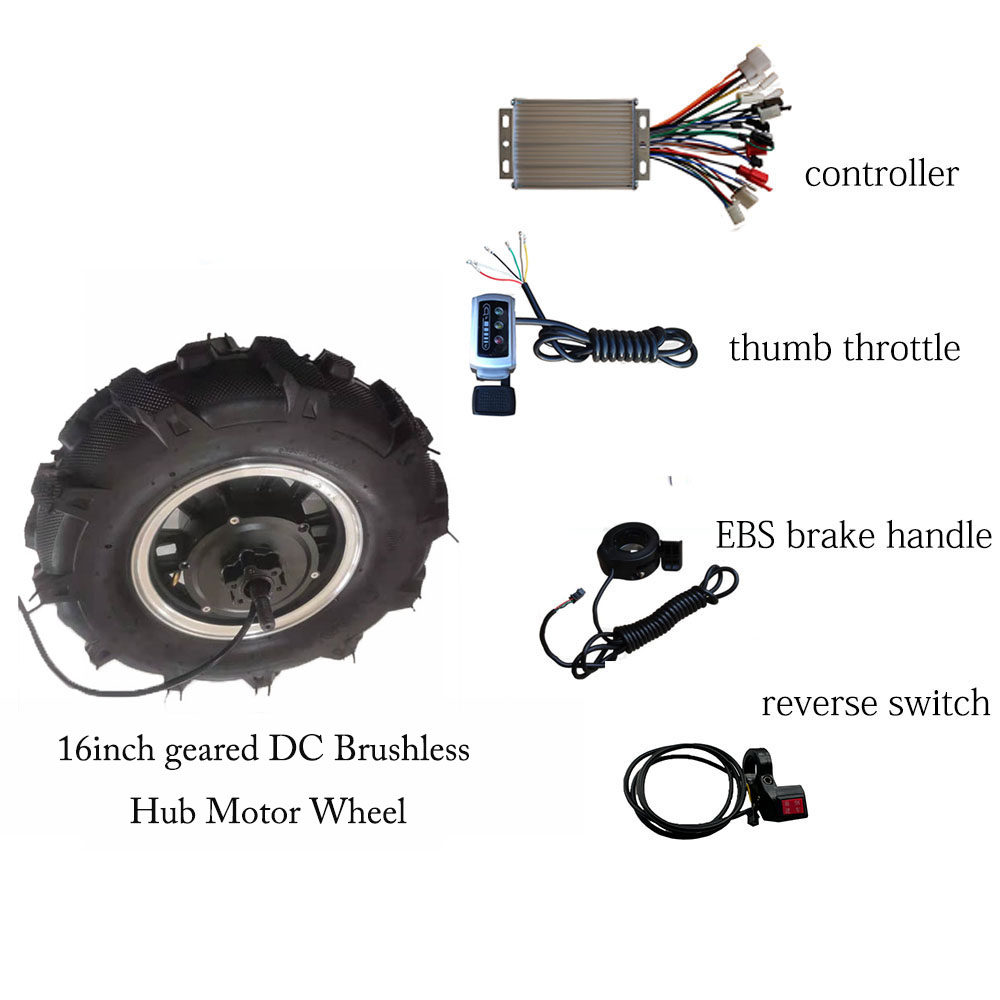

Model: T-HM-016G
Type: DC brushless geared hub motor
Output power (W): 500-1000
Voltage（V）：24/36/48
Unload speed(rpm): 300
No-load current (A): 15A
Torque（N.m): 80
Diameter with tire(mm): 400
Brake method: EBS/disc brake
Weight (kg): 7
Gear Ratio: 1:4.33
