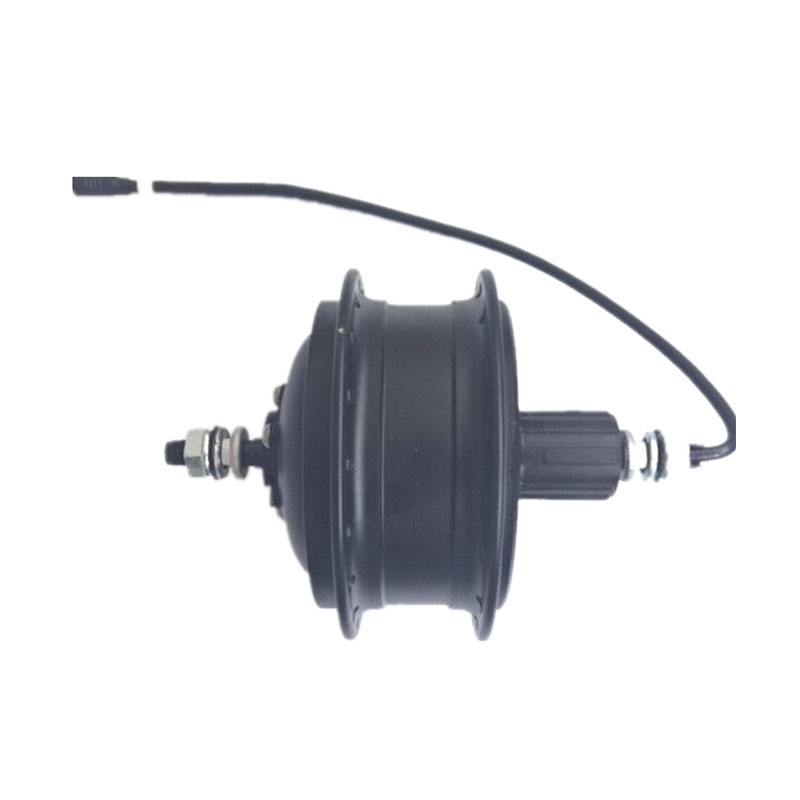

cassette spoke rear drive ebike motor
Voltage: 24-48v
Power: 250/350/500W
Motor type: brushless geared hub motor
Motor net weight: 3 kg
Motor diameter: 140 mm
Motor shaft diameter: M12
Motor shaft length: 200 mm
Motor cable length: 100 cm
Number of Hall sensors: 3 (with in-band speed measurement)
Rated speed: 180-320 rpm
Rated torque: 15-35nm
Flat fork width requirement: Min.135mm (single speed gear, 6 speed gear, 7 speed gear)
Brake: Disc brake drum type can be installed with 6 screws
Available aluminum wheel sizes: 12″, 16″, 18″, 20″, 24″, 26″, 700c, 28″
Outgoing mode: spindle center outgoing/right outgoing
Knitting wheel diameter (inch): 16/18/20/22/24/26/700C/28
Rated speed (km/h): 20-35 (optional)
Rated efficiency (%): >=80
Surface treatment: Yahei
Reduction ratio: 1:5
Braking method: V brake/disc brake
Salt spray test (h): 24/96
Noise (db): <50
Drive mode: rear drive
Waterproof rating: IP54
Bicycle Motor ATV Engine BSpoke Motor
Open Size Front (mm)：100
Wheel Size (IN)：20-26
Open Size Rear （mm）：135
Rated Voltage (V)：36/48/60
Drive：Rear or front
No-load current (A): 1.2
Cable Location：Shaft center right
Rated current (A): 12
Spoke Specification：12G
Rated torque (N)：55.0
Hall Sensor：Optional
Rated Power (W)：500
Speed Display：Optional
Rated Speed (km/h)：25-55
Surface：Black painted
Rated Efficiency (%)：≧82
Brake Type for Rear：saucer Brake
Reduction Ratio：1：5.0
Noise (db)：< 50
Weight(Rear motor) (kg)：4.00
Waterproof Grade：IP54

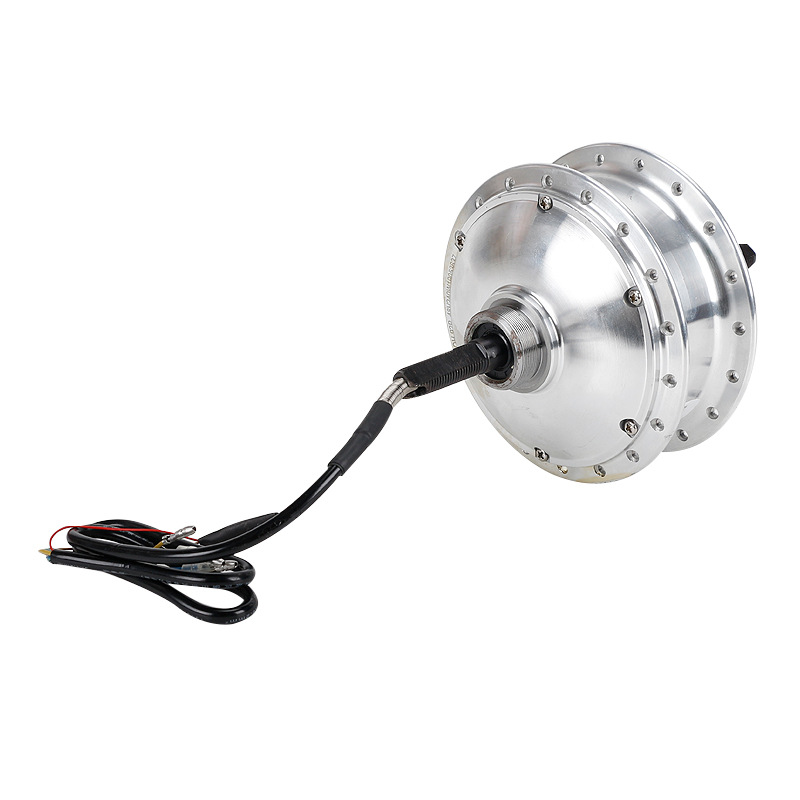

DC brushless ebike motor
Open Size Front (mm)：100
Wheel Size (IN)：16-26
Open Size Rear （mm）：135
Rated Voltage (V)：36/48
Drive：Rear
No-load current (A): 0.7
Cable Location：Shaft center right
Rated current (A): 8
Spoke Specification：10G
Rated torque (N)：6
Hall Sensor：Optional
Rated Power (W)：250
Speed Display：Optional
Rated Speed (km/h)：20-35
Surface：light/Black painted
Rated Efficiency (%)：≧80
Brake Type for Rear：Band Brake
Reduction Ratio：1：4.2
Noise (db)：< 50
Weight(Rear motor) (kg)：2.96
Waterproof Grade：IP54

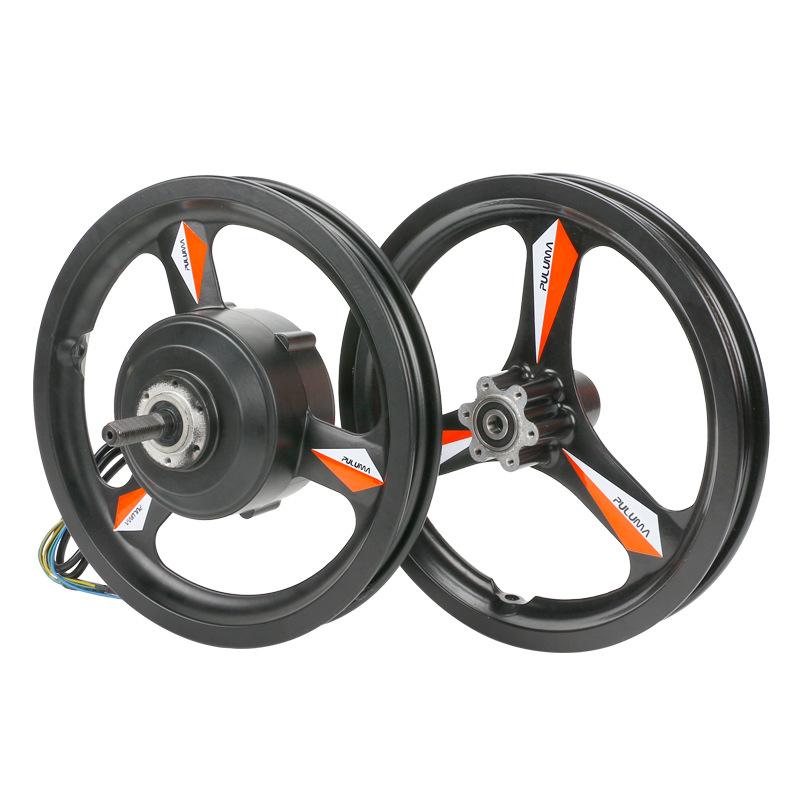

Rated Voltage (V)：36/48
Open Size Front (mm)：100
Wheel Size (IN)：14
Open Size Rear （mm）： 120-135
No-load current (A): 0.7
Rated current (A) 8
Rated torque (N)：6
Hall Sensor：yes
Rated Power (W)：240
Rated Speed (km/h)：20-35
Surface：Black painted
Rated Efficiency (%)： ≧80
Brake Type for Front：V/disc Brake
Reduction Ratio：01:04.2
Brake Type for Rear： disc Brake
Weight(Front wheel) (Kg)：1
Weight(Rear motor) (kg)： 2.8
Noise (db)： < 50
Waterproof Grade：IP54
